Takeuchi TB290-2 Hydraulic Excavator

The TB290-2 Compact Excavator is a world beating 9 tonne excavator with a wide array of features that maximize efficiency and productivity, a proven powerful excavator designed for major groundworks and earthmoving.
Mono or 2-piece the new 9-tonne excavator offers a versatile excavating performance with excellent breakout force of 59.1 kN.

Weight

8400 kg

Dimensions

220 × 255 cm

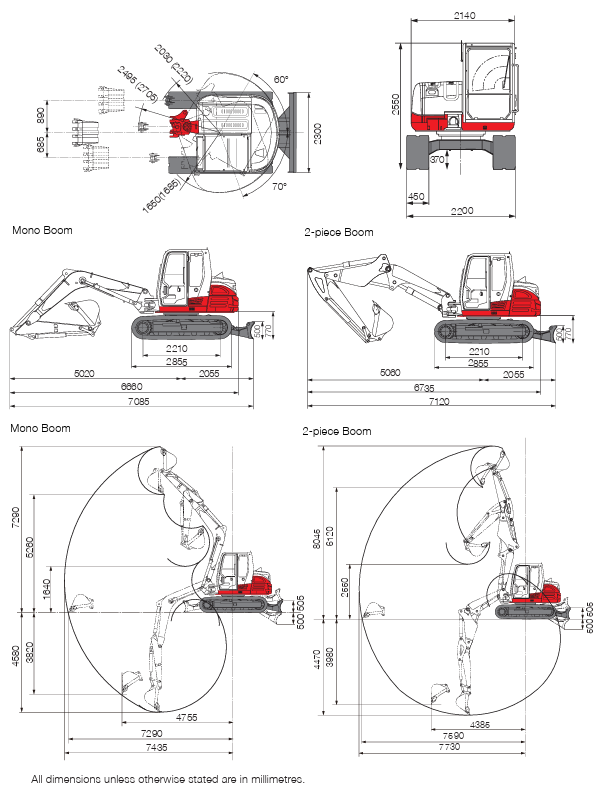

Lifting Diagram

Takeuchi TB290-2 hydraulic excavator working range and dimensions diagram

Technical Data

Engine

Make - Yanmar
Model - 4TNV98CT-WTB DPF
Rated Output (kW/rpm) - 51.6/2000
Maximum Torque (Nm) - 308
Cylinders - 4
Displacement (cc) - 3318
Electrical System - 12V 90A

Dimensions & Weight

Operating Weight (kg) - 8400 (8715)
Overall Length (mm) - 6660 (6735)
Width incl. dozer (mm) - 2300
Height (mm) - 2550
Ground Clearance (mm) - 370
Min. Radius at Max Offset (mm) - 2030 (2220)
Tail Swing Radius (mm) - 1650 (1685)
Dozer Blade (W x H) (mm) - 2300 x 500

Operating Information

Max Digging Depth (mm) - 4580 (4470)
Max Dump Height (mm) - 5260 (6120)
Max Reach at Ground Level (mm) - 7290 (7590)
Max Vertical Digging Depth (mm) - 3280 (3980)
Max Bucket Digging Force (kN) - 59.1
Long Arm Digging Force (kN) - 36.3

Hydraulic System

Pump Type - Single Variable piston + Gear x 2
1st Aux Max Flow (l/min) - 100
Pressure (bar) - 210
2nd Aux Max Flow (l/min) - 60
Pressure (bar) - 210

Swing System

Boom Swing Angle (L/R) - 70°/60°
Slew Speed (rpm) - 10.3
Slew Motor - Constant Volume
Piston Motor
Slew Brake - Wet Friction Plate

Undercarriage

Traction Motor - Axial Piston
Traction Drive - Planetary
Traction Brake - Disc
Track Width (mm) - 450
Ground Contact Length (mm) - 2210
Ground Pressure (kPa) - 37.6 (39)
Travel Speed km/ph - 2.6-5
Maximum Gradeability (degrees) - 35

Capacities

Hydraulic System (l) - 140
Fuel Tank (l) - 128
Engine Lubrication (l) - 10.2
Cooling System (l) - 14

Health & Safety

Noise / Sound Power Level (LwA) - 99 dB
Vibration Hand Arm / Body m/sec² - ≤2.5 / ≤0.5
