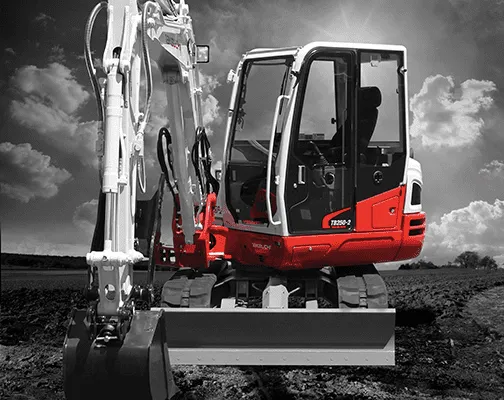

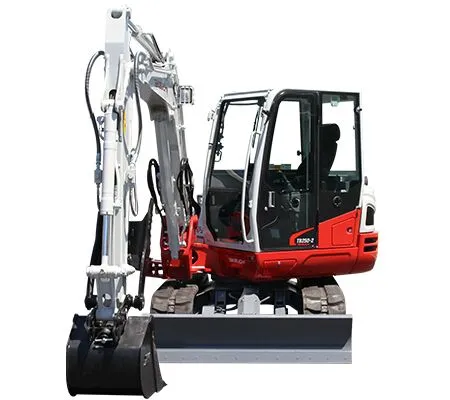

Takeuchi TB250-2 Compact Excavator

Operating Performance

Operating Weight - Cab - 5,120 kg
Operating Weight - Canopy - 4,970 kg
Bucket Capacity (Heaped) - 0.141 m³
Slew Speed - 9.5 min-1
Travel Speed
1st - 2.8 km/h
2nd - 5.2 km/h
Gradeability - 30°
Ground Pressure - Cab - 30 kPa
Ground Pressure - Canopy - 29 kPa
Max Bucket Breakout Force - 37.3 kN
Max Arm Digging Force (1,600 mm Arm) - 24.8 kN
Max Arm Digging Force (1,760 mm Arm) - 23.4 kN
Traction Force - 54.8 kN
Boom Swing Angle (Left / Right) - 75° / 60°

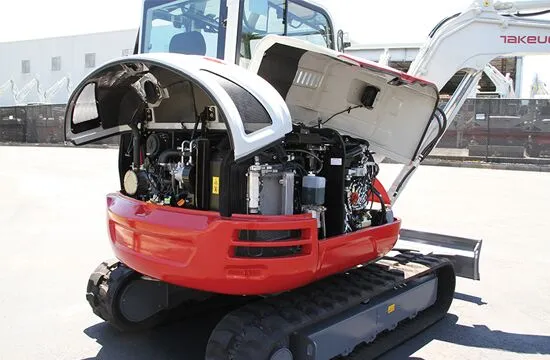

Engine

Make / Model - Yanmar / 4TNV88C
Rated Output (ISO 14396) - 29.1 kW / 2,400 min-1
Maximum Torque 144.9 Nm / 1,560 min-1
Displacement - 2,189 ml
Alternator - 12 V - 0.66 kW
Battery (IEC 60095-1) - 12 V - 90 A . h

Fluid Capacities

Engine Lubrication - 7.4 L
Cooling System - 7.0 L
Fuel Tank Capacity - 70.0 L
Hydraulic Reservoir Capacity - 45.0 L
Hydraulic System Capacity - 95.0 L

Hydraulic System

P1, P2
Flow Rate - 52.8 L/min
Relief Pressure - 24.0 MPa
P3
Flow Rate - 38.9 L/min
Relief Pressure - 20.6 MPa
Service Port 1
Flow Rate - 91.7 L/min
Hydraulic Pressure - 20.6 MPa
Service Port 2
Flow Rate - 38.9 L/min
Hydraulic Pressure - 20.6 MPa
Service Port 3
Hydraulic Pressure - 20.6 MPa
Service Port 4
Flow Rate - 38.9 L/min
Hydraulic Pressure - 20.6 MPa

Safety and Health

Vibration Levels
Hand / Arm - < 2.5 m/s²
Body - < 0.5 m/s²
Sound Power Level - LWA 96 dB
