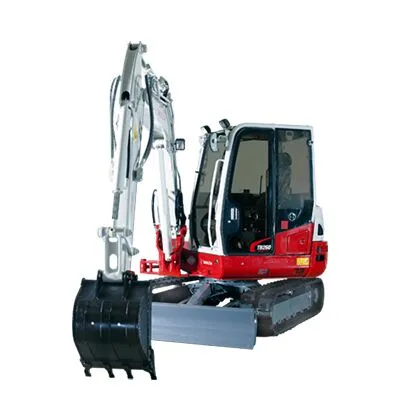

Takeuchi TB260 Compact Excavator

Operating Performance

Operating Weight - Cab - 5,735 kg
Operating Weight - Canopy - 5,500 kg
Bucket Capacity (Heaped) - 0.168 m³
Slew Speed - 9.4 min-1
Travel Speed
1st - 2.8 km/h
2nd - 4.9 km/h
Gradeability - 30°
Ground Pressure - Cab - 31.5 kPa
Ground Pressure - Canopy - 30.2 kPa
Maximum Bucket Breakout Force - 43.2 kN
Maximum Arm Digging Force (1,620 mm Arm) - 27.3 kN
Maximum Arm Digging Force (1,780 mm Arm) - 25.6 kN
Traction Force - 66.9 kN
Boom Swing Angle (Left/Right) - 78° / 55°

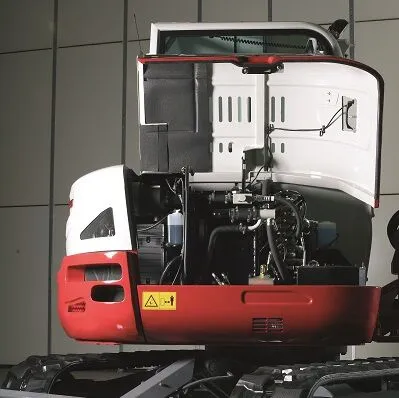

Engine

Model - Yanmar 4TNV84T
Rated Output (ISO 14396) - 34.3 kW / 2,400 min-1
Maximum Torque - 160.8 Nm 1,700 min-1
Displacement - 1,995 ml
Alternator - 12 V - 0.66 kW
Battery (IEC 60095-1) - 12 V - 90 A h

Fluid Capacity

Engine Lubrication - 7.4 L
Cooling System - 11.0 L
Fuel Tank Capacity - 81.0 L
Hydraulic Reservoir Capacity - 49.0 L
Hydraulic System Capacity - 90.0 L

Hydraulic System

P1, P2 - Variable Displacement Pump
Flow Rate - 58.3 L/min
Relief Pressure - 24.0 MPa
P3 - Gear Pump
Flow Rate - 43.9 L/min
Relief Pressure - 20.6 MPa
Service Port 1
Flow Rate - 102.2 L/min
Hydraulic Pressure - 20.6 MPa
Service Port 2
Flow Rate - 43.9 L/min
Hydraulic Pressure - 20.6 MPa
Service Port 3
Hydraulic Pressure - 20.6 MPa
Service Port 4
Flow Rate - 43.9 L/min
Hydraulic Pressure - 20.6 MPa

Safety and Health

Vibration Levels
Hand / Arm - < 2.5 m/s²
Body - < 0.5 m/s²
Noise Level
Sound Power Level - LWA 97 dB
