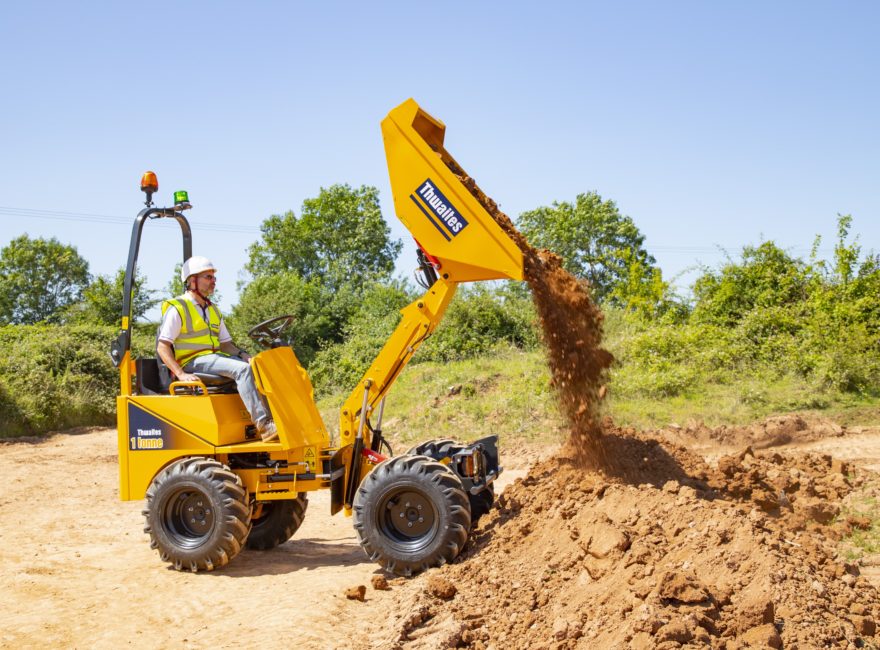

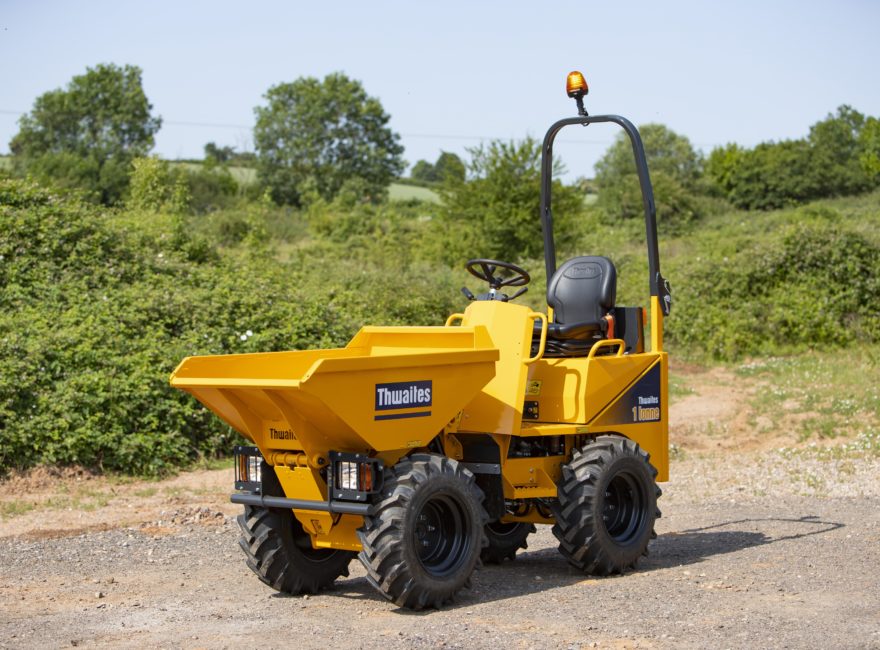

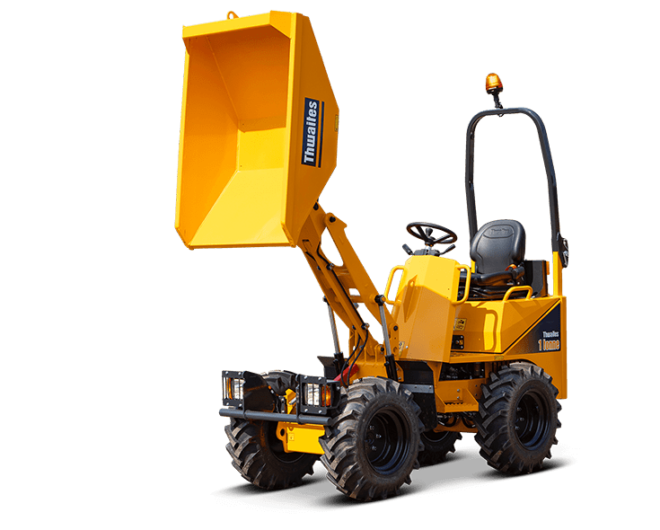

Thwaites 1 Tonne Hi Tip

Market leading and the hirers favourite, the Thwaites 1 tonne, Stage V dumpers are easily transported by trailer and available in a range of configurations to best suit your needs:

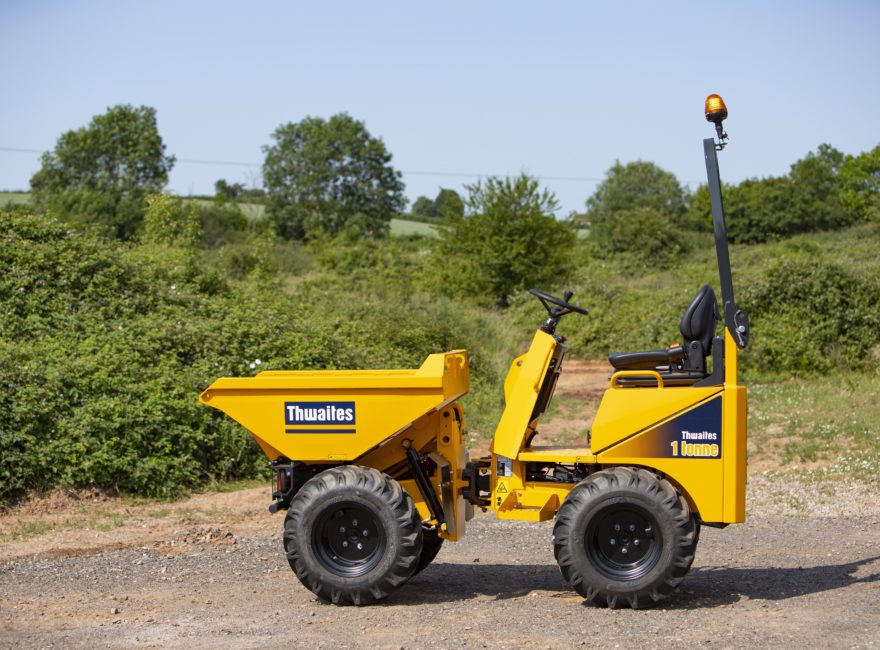

  • Hi Tip

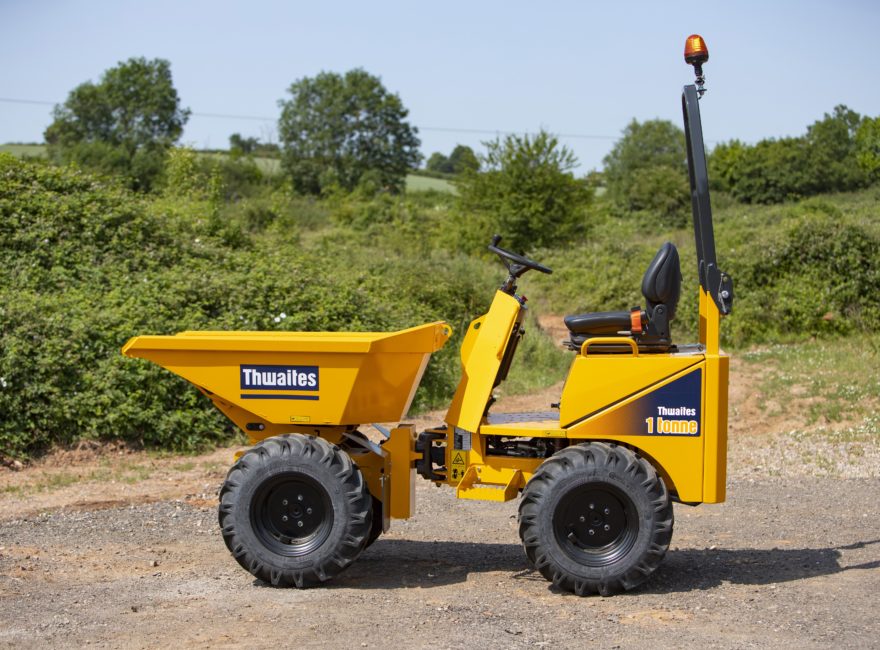

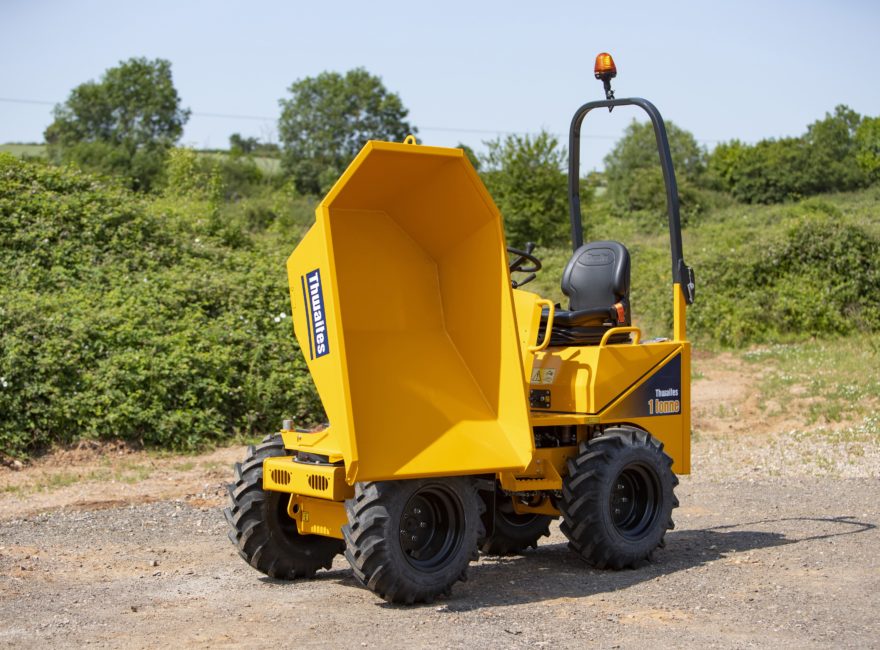

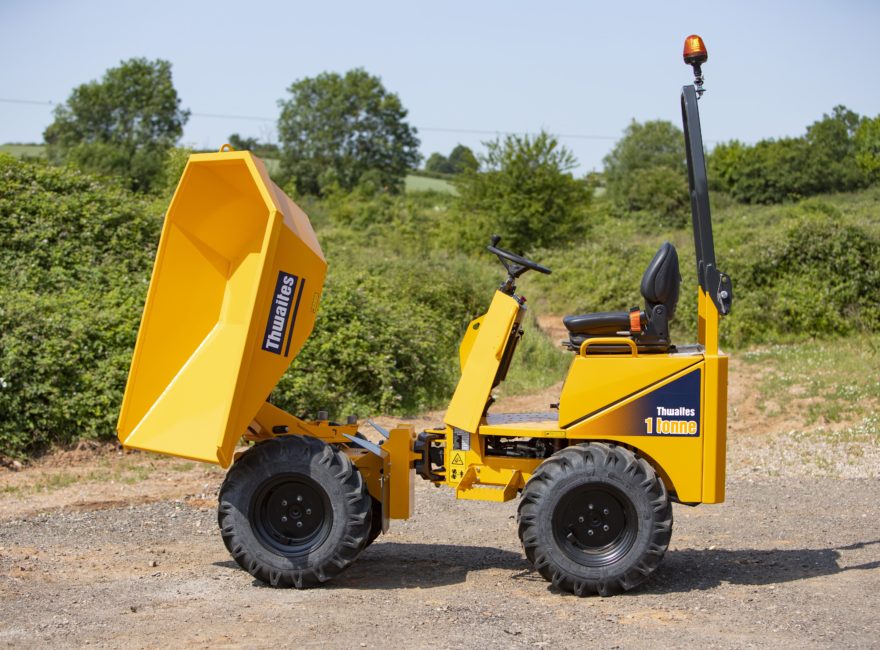

  • Power Swivel
  • Hydrostatic Transmission

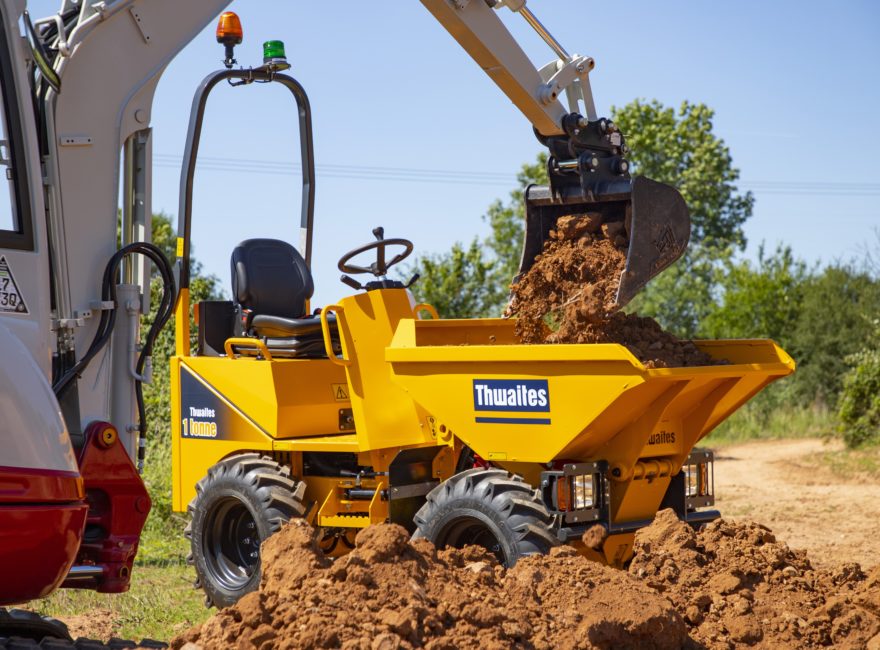

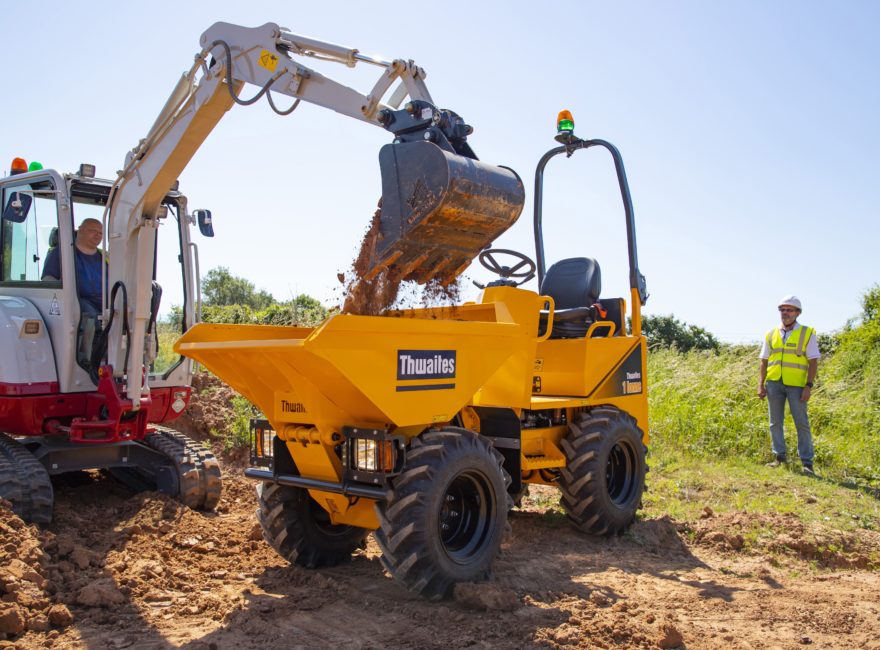

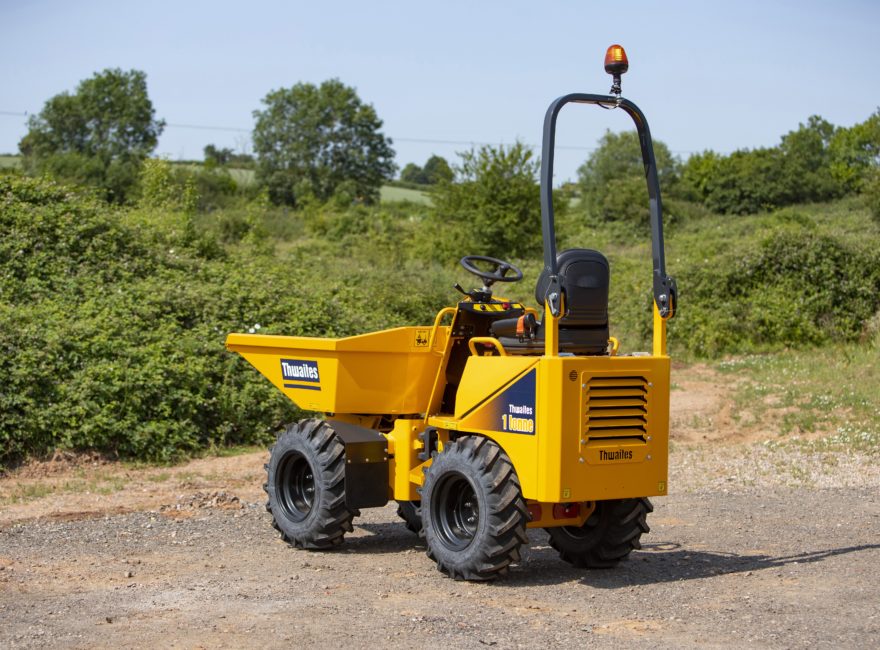

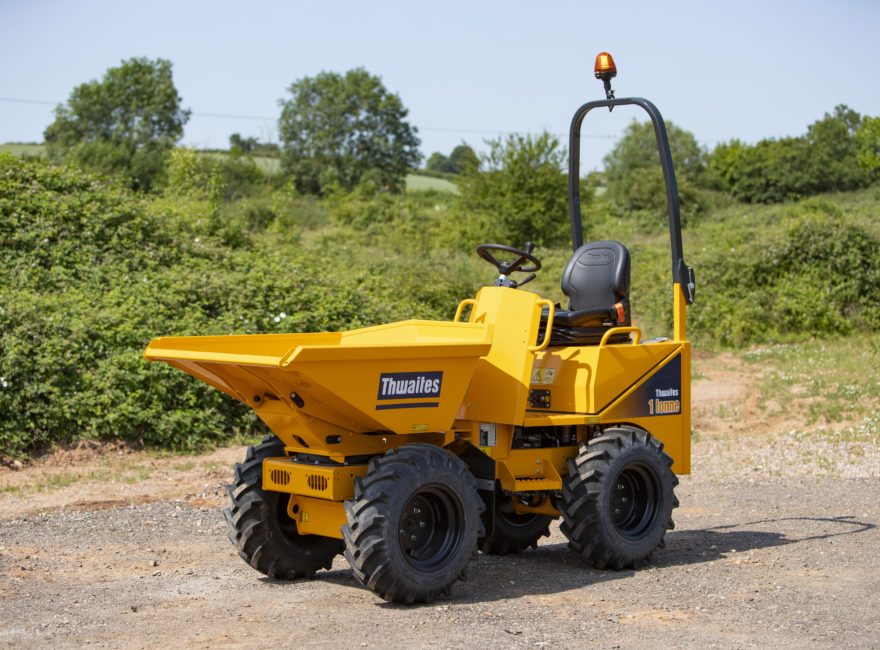

These are the ideal machines when working in confined spaces or where access is limited. Width options range from 982 mm to 1195 mm for optimum stability and a user-friendly hydrostatic transmission makes operation simple. The compact Hi Tip dumper is an effective and efficient skip loader, ideal in the building of house extensions or property landscaping. The compact Power Swivel dumper enables a 180° rotation of the skip, providing contractors and hirers with additional versatility and improved on-site performance.

Safe, compliant and competitive.

Additional information

Weight1295 kg
Dimensions303.2 × 111.5 × 286 cm

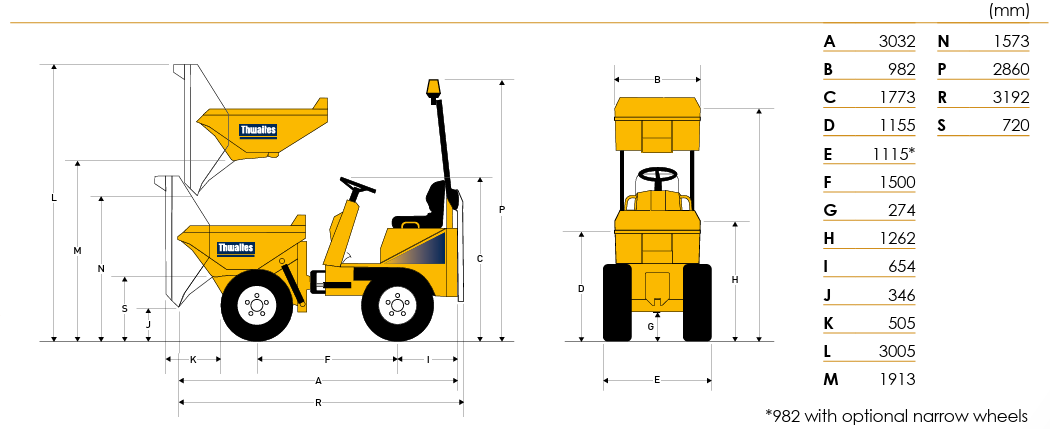

Thwaites 1 tonne hi-tip dumper lifting and dimensions diagram

Max safe load
1000kg
Heaped capacity
500 litres
Struck capacity
400 litres
Water capacity
280 litres
Engine
Yanmar 3TNV76, 3-cylinder, water-cooled diesel
Power
15.9 kW/21.4 bhp at 2800rpm
Torque
66.4Nm (49 lbf ft)
Noise Levels
Operator's ear 84 LpA / airborne level 101 LwA
Transmission
Hydrostatic with variable displacement pump feeding four wheel motors, incorporating “Twin-Lock” system to maximise traction
Speeds
Forward and Reverse
0-12km/h (0-7.5mph)
Brakes and Axles
Automatic failsafe braking system incorporated into rear drive motors
Chassis
Front and rear chassis constructed from folded steel plate, with centre-point articulation and oscillation for optimum stability and traction
Skip
Hydraulically operated, 3 mm base, 4 mm sides steel plate
Skip mouth reinforced with box sections

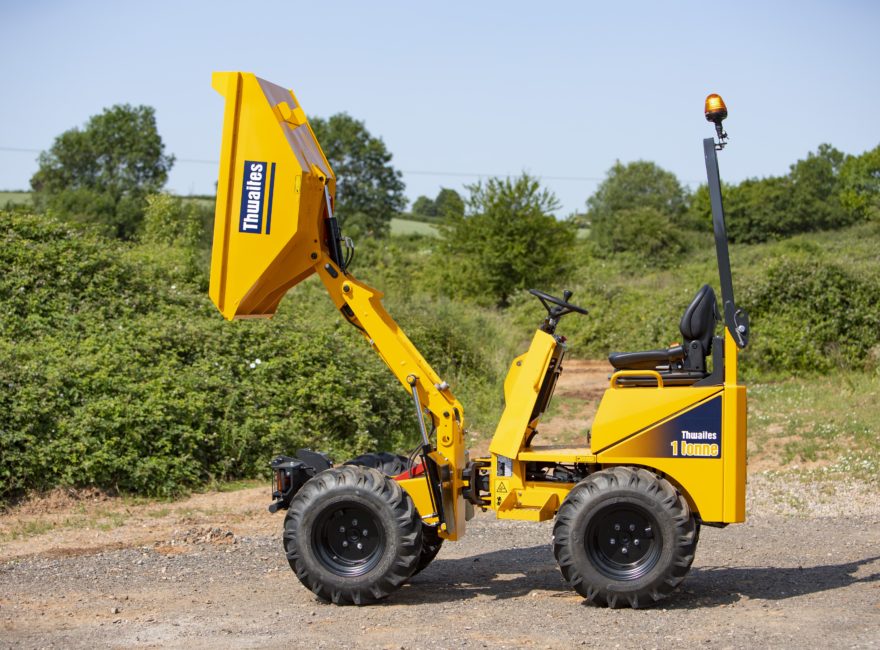

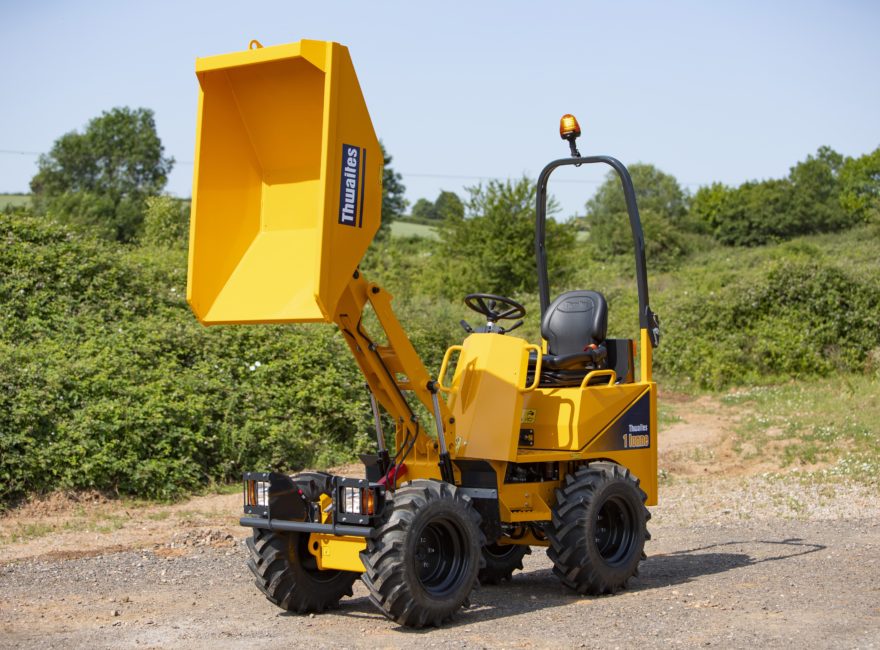

Hi-Tip scissor lift mechanism
Seating & Controls
Adjustable suspension seat with high-vis seat belt
LED warning lights for all critical functions
Service Access
Lockable engine cover provides easy access from ground level to engine service points.
Electrics
Wiring harness contained within conduits
All electrical components water resistant to IP67 rating
Steering and Hydraulics
Hydraulic power steering
Return line filtration for all services
Hydraulic test point fitted as standard
Tank Capacities
Fuel: 21 litres
Hydraulic: 20 litres
Turning Circle
5.45m
Standard Equipment
LED Beacons
Reverse alarm
Optional Equipment
Road mirrors
Wheel nut indicator
Road lights
Towing bracket
Sand tyres and narrow tyres
PLEASE NOTE: Our machines are available for hire only - our machines are not available for purchase.
