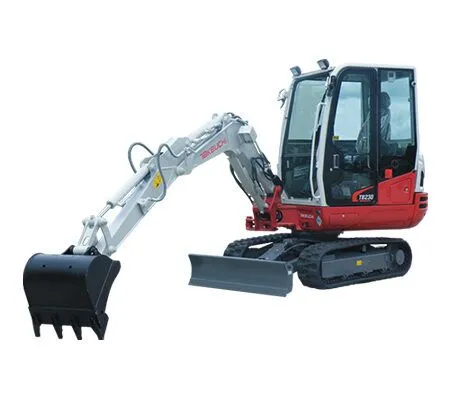

Takeuchi TB230 Compact Excavator

Operating Performance

Operating Weight - Cab - 2,875 kg
Operating Weight - Canopy - 2,810 kg
Bucket Capacity (Heaped) - 0.068 m³
Slew Speed - 10.3 min-1
Travel Speed
1st - 2.9 km/h
2nd - 5.2 km/h
Gradeability - 30°
Ground Pressure - Cab - 29.3 kPa
Ground Pressure - Canopy - 28.7 kPa
Maximum Bucket Breakout Force - 20.9 kN
Maximum Arm Digging Force (1,290 mm Arm) - 14.0 kN
Maximum Arm Digging Force (1,445 mm Arm) - 12.9 kN
Traction Force - 28.2 kN
Boom Swing Angle (Left/Right) - 79° / 58°

Engine

Model - Yanmar / 3TNV88F
Rated Output (ISO 14396) - 18.2 kW/2,400 min-1
Maximum Torque - 92.2 Nm/1,440 min-1
Displacement - 1,642 ml
Alternator - 12 V - 0.66 kW
Battery (IEC 60095-1) - 12 V - 64.0 A h

Fluid Capacity

Engine Lubrication - 4.7 L
Cooling System - 4.0 L
Fuel Tank Capacity - 46.0 L
Hydraulic Reservoir Capacity - 35.0 L
Hydraulic System Capacity - 56.0 L

Hydraulic System

P1, P2 - Variable Displacement Pump
Flow Rate - 32.4 L/min
Relief Pressure - 21.0 MPa
P3 - Gear Pump
Flow Rate - 21.6 L/min
Relief Pressure - 20.0 MPa
Service Port 1
Flow Rate - 54.0 L/min
Hydraulic Pressure - 21.0 MPa
Service Port 2
Flow Rate - 21.6 L/min
Hydraulic Pressure - 20.0 MPa
Service Port 3
Hydraulic Pressure - 20.0 MPa
Service Port 4
Flow Rate - 21.6 L/min
Hydraulic Pressure - 20.0 MPa

Safety and Health

Vibration Levels
Hand / Arm - < 2.5 m/s²
Body - < 0.5 m/s²
Noise Level
Sound Power Level - LWA 93 dB
