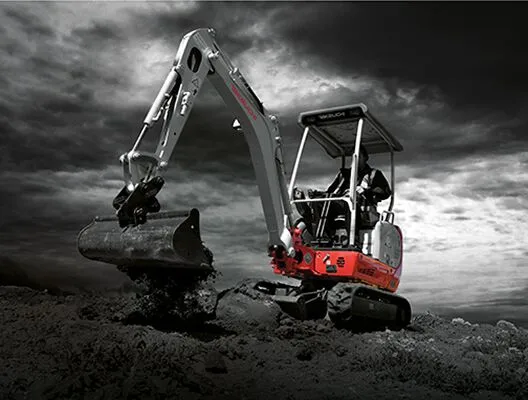

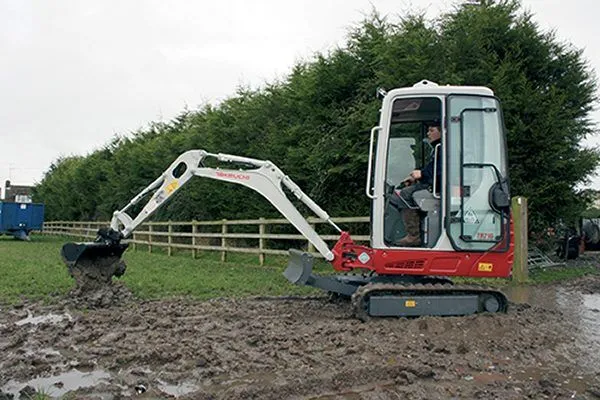

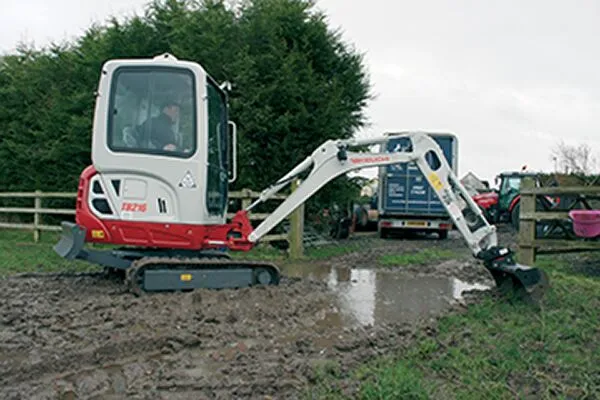

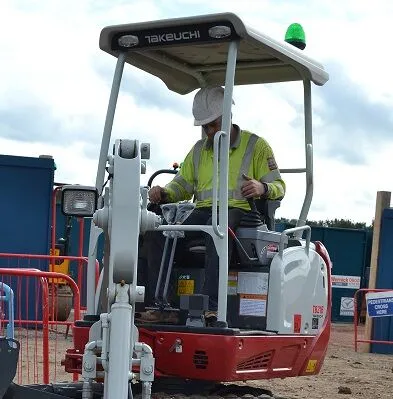

Takeuchi TB216 Compact Excavator

Operating Performance

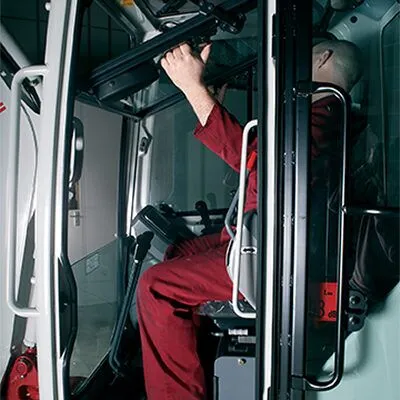

Operating Weight - Cab - 1,865 kg

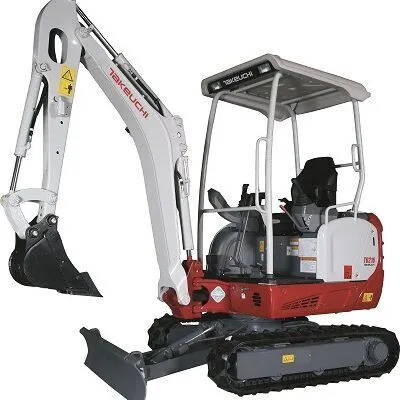

Operating Weight - Canopy - 1,770 kg
Bucket Capacity (Heaped) - 0.038m³
Slew Speed - 9.2 min-1
Travel Speed
1st - 2.2 km/h
2nd - 4.2 km/h
Gradeability - 15°
Ground Pressure - Cab - 31.0 kPa
Ground Pressure - Canopy - 29.4 kPa
Maximum Bucket Breakout Force - 14 kN
Maximum Arm Digging Force (930 mm Arm) - 9.5 kN
Maximum Arm Digging Force (1,030 mm Arm) - 8.2 kN
Traction Force - 19.4 kN
Boom Swing Angle (Left/Right) - 80° / 50°

Engine

Model - Yanmar 3TNV70
Rated Output (ISO 14396) - 11.5 kW / 2,400 min-1
Maximum Torque - 52.7 Nm / 1,800 min-1
Displacement - 854 ml
Alternator - 12 V - 0.48 kW
Battery (IEC 60095-1) 12 V - 45 A h

Fluid Capacity

Engine Lubrication - 2.8 L
Cooling System - 3.8 L
Fuel Tank Capacity - 22.0 L
Hydraulic Reservoir Capacity - 16.0 L
Hydraulic System Capacity - 24.5 L

Hydraulic System

P1, P2 - Variable Displacement Pump
Flow Rate - 16.8 L/min
Relief Pressure - 21.0 MPa
P3 - Gear Pump
Flow Rate - 10.8 L/min
Relief Pressure - 20.0 MPa
Service Port 1
Flow Rate - 33.6 L/min
Hydraulic Pressure - 21.0 MPa
Service Port 2
Flow Rate - 10.8 L/min
Hydraulic Pressure - 20.0 MPa
Service Port 3
Hydraulic Pressure - 20.0 MPa

Safety and Health

Vibration Levels
Hand / Arm - < 2.5 m/s²
Body - < 0.5 m/s²
Noise Level
Sound Power Level - LwA 93 dB
