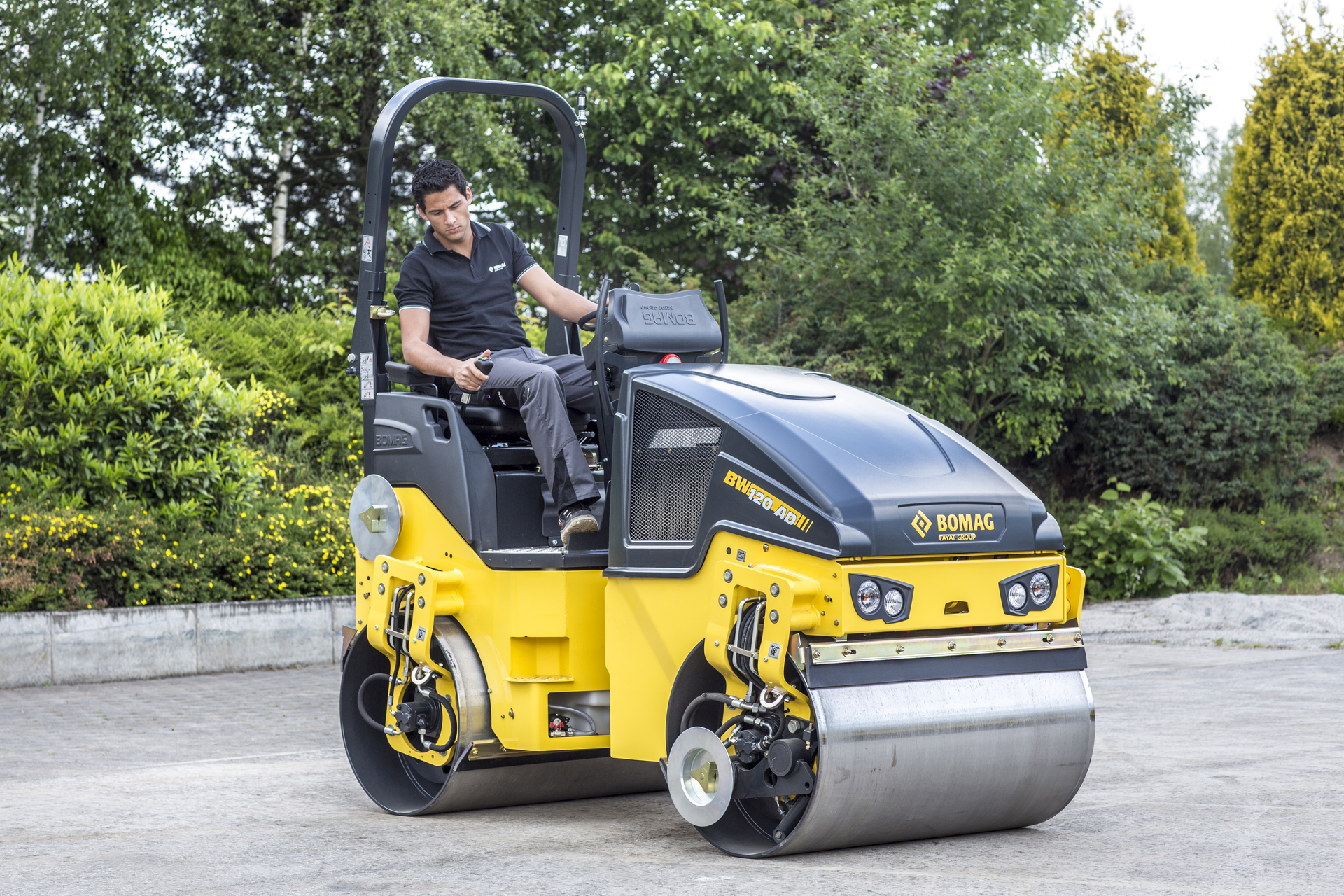

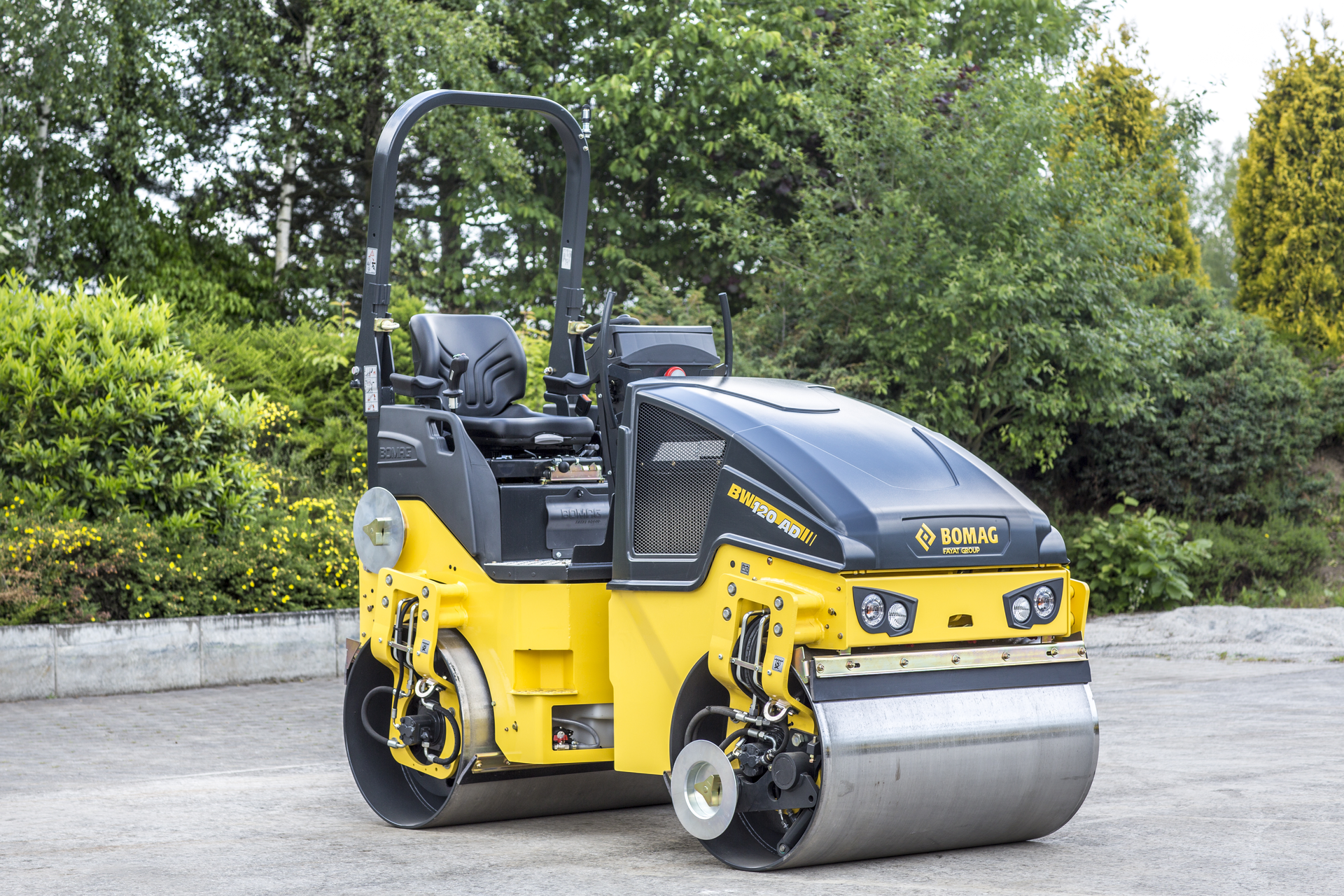

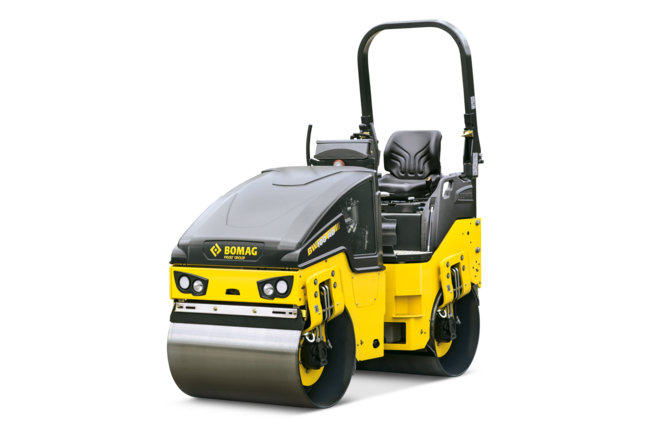

Bomag 120 AD Twin Drum Roller

Machine Specifications

Operating Weight w. ROPS CECE - 2700 kg
Average static linear load CECE - 11,3 kg/cm
Grossweight - 3500 kg

Dimensions

Working Width - 1200 mm
Track Radius, Inner - 2450 mm

Driving Characteristics

Speed - 0 – 10 km/h / 0 – 6.21 mph
Working speed with vibration - 0 – 10 km/h / 0 – 6.21 mph
Max. Gradeability without/with vbr - 40/30 %

Drive

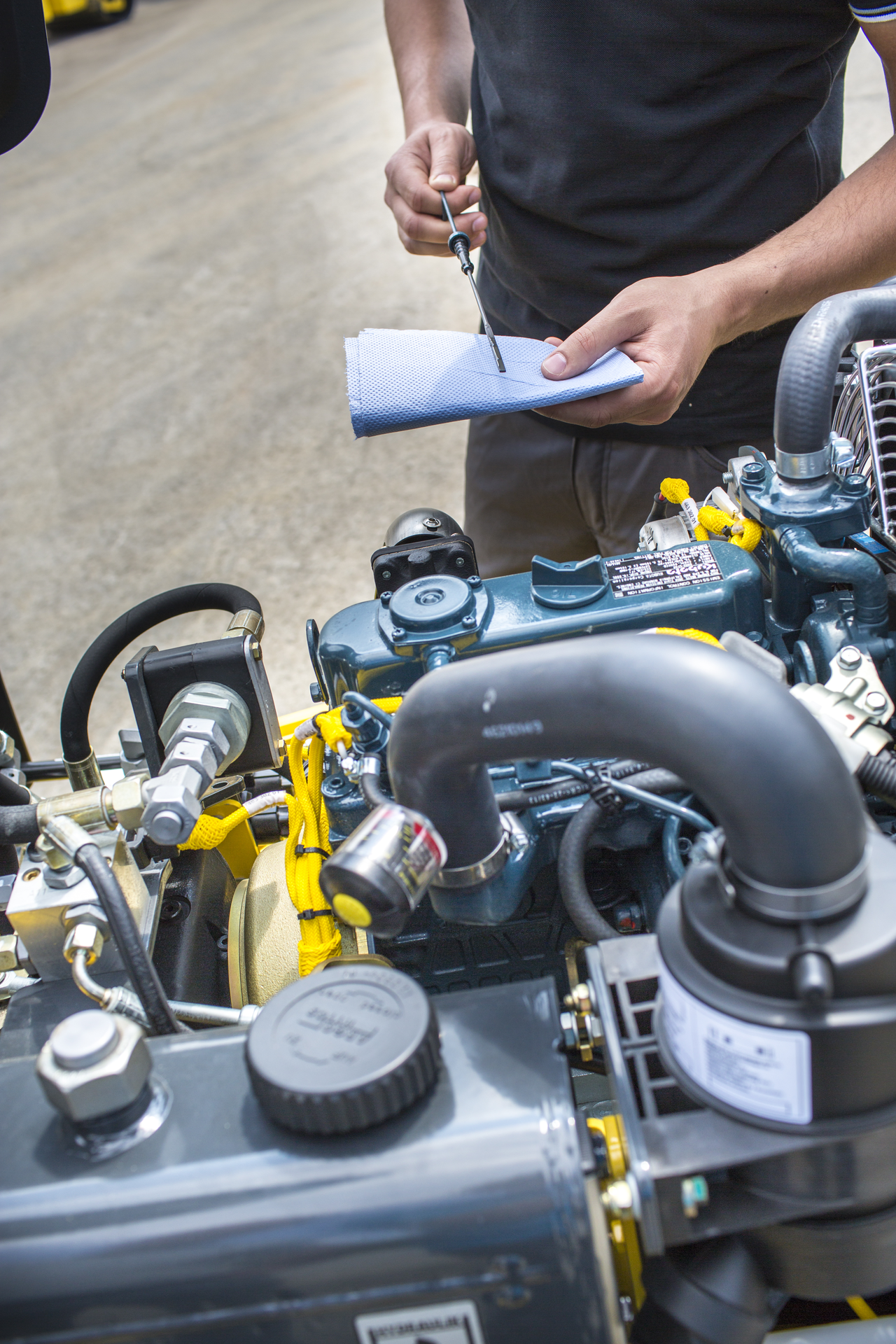

Engine Manufacturer - Kubota
Type - D1803
Emission Stage - 4/4
Cooling - Water
Number of Cylinders - 3
Performance ISO 14396 - 24.6 kW
Performance SAE J 1995 - 33 hp
Speed - 2.600 min-1
Speed Adjustment 1 - 2.500 min-1
Speed Adjustment 2 - 2.600 min-1
Electric Equipment - 12 V
Driven Drum - Front + rear

Brakes

Service Brake - Hydrost.
Parking Brake - Hydromec.

Steering

Steering System - Oscil.artic
Steering Method - Hydrost
Steering Angle / Oscillating Angle +/- - 32/10 grad
Crab Walk - 0-50

Exciter System

Vibrating Drum - Front + Rear
Drive System - Hydrost.
Frequency - 63/67 Hz
Amplitude - 0.50 mm
Centrifugal Force - 30/34 kN

Sprinkler System

Type of sprinkling - Pressure

Capacities

Fuel - 35L
Water - 205 L
